1. What Are The Models Of Skeleton Oil Seal?

Skeleton oil seals play a vital role in machinery, preventing lubricating oil leaks and ensuring smooth operation. These seals are available in various models, each tailored to meet specific application needs. This article explores the different types of skeleton oil seals and highlights their unique features.

The TC model (double-lip with a spring) is among the most commonly used types. It is widely employed in automotive engines, gearboxes, and hydraulic systems. The double-lip design ensures exceptional sealing performance, while the spring maintains a firm fit between the seal and the shaft, enhancing reliability.

The TB model (single-lip with a garter spring) is another popular option. Commonly used in rotary shaft applications such as pumps, motors, and compressors, its single-lip design simplifies installation and minimizes friction, making it ideal for high-speed rotating shafts.

The VC model (zero-pressure single-lip radial oil seal without a garter spring) features a rubber-covered outer diameter for improved sealing capability. However, it is less suitable for polluted environments due to the absence of an additional exclusionary lip.

The SC model (single-lip with a metal case) is preferred in industries with stringent hygiene standards, such as food processing and pharmaceuticals. Its metal casing offers excellent resistance to chemicals and high temperatures, ensuring durability in demanding environments.

2. Selecting the Right Seal Material

Skeleton oil seals are manufactured from various materials, each with distinct properties to suit specific applications. Choosing the correct material is crucial, as it directly influences the seal's resistance to heat, chemicals, and wear. Below is an overview of commonly used materials:

- Nitrile Rubber (NBR):

  NBR is the most widely used material for oil seals due to its excellent resistance to oil and abrasion. It performs effectively in temperatures ranging from -40°C to +120°C, making it ideal for general-purpose sealing in industrial and automotive settings.

- Fluorocarbon Rubber (Viton):

  Viton seals are known for their superior resistance to heat and chemicals, handling temperatures up to 200°C. They are particularly suited for environments with aggressive fluids and high temperatures, ensuring durability in demanding applications.

- Silicone Rubber:

  Silicone seals provide excellent flexibility across a wide temperature range, making them suitable for both high- and low-temperature environments. However, they are less resistant to oil compared to NBR or Viton. Silicone is preferred in applications where temperature extremes outweigh the need for oil resistance.

- Polyurethane (PU):

  PU seals excel in wear and abrasion resistance, making them ideal for high-friction and high-stress applications. Their durability ensures extended service life in demanding conditions.

- PTFE (Teflon):

  PTFE seals offer exceptional chemical resistance and can operate in a broad temperature range. These properties make them the go-to choice for applications involving highly aggressive fluids or extremely high temperatures.

3. Choosing the Right Lip Design

The lip design of an oil seal significantly impacts its ability to prevent leakage and resist pressure. Skeleton oil seals come in various lip designs tailored to specific application requirements:

- Single Lip (SL):

  Single-lip oil seals are designed to contain fluids within the system, preventing internal leakage. They are ideal for general-purpose applications where pressure is low, and there is minimal risk of external contamination.

- Double Lip (DL):

  Double-lip oil seals feature an additional lip that acts as a barrier against external contaminants such as dust, dirt, and moisture. These seals are perfect for outdoor or harsh environments where debris exposure is a concern.

- Triple Lip (TL):

  Triple-lip oil seals are designed for heavy-duty applications, providing enhanced sealing performance under high pressure and in environments with significant exposure to contaminants. The extra lips ensure a robust seal and improved durability in demanding conditions.

4. Considering Seal Dimensions

Selecting the correct dimensions is crucial to ensure a proper fit and effective sealing. Skeleton oil seals are specified by three key measurements: inner diameter (ID), outer diameter (OD), and width.

- Inner Diameter (ID):

  The ID corresponds to the diameter of the shaft where the seal will be installed. Accurate measurement of the shaft is essential to prevent leakage or damage to the seal.

- Outer Diameter (OD):

  The OD is the diameter of the bore or housing that holds the seal. The seal's OD should be slightly larger than the bore to ensure a secure and tight fit.

- Width:

  The width of the oil seal must match the depth of the groove or housing in which it will sit. A mismatched width can cause misalignment, compromising the seal's performance.

5. Check the Operating Temperature Range

The temperature range the oil seal will encounter is a critical factor in its performance. If the temperature exceeds the seal’s tolerance, it can lead to material degradation, hardening, or softening, resulting in premature seal failure.

- Low Temperatures:

  In cold environments, materials like silicone maintain flexibility at low temperatures. Nitrile rubber (NBR) seals can handle cold conditions but are less effective in extreme cold.

- High Temperatures:

  For high-temperature applications, materials such as Viton or PTFE are ideal as they can withstand heat without losing their sealing properties.

Ensure that the material and design you select are capable of handling the full temperature range of your specific application, both at high and low extremes.

6. Verify Pressure Handling Capability

While most skeleton oil seals are designed for low-pressure applications, some are specifically engineered to handle moderate to high pressures. If your application involves significant pressure, select a seal that can endure the additional force without failure.

- Low-Pressure Seals:

  Standard skeleton oil seals are suitable for general-purpose applications with low-pressure environments.

- High-Pressure Seals:

  For applications with higher pressure, choose seals with reinforced lips or specialized designs that can effectively manage the increased force and ensure durability.

7. Review Shaft Surface and Speed

The condition and speed of the shaft where the oil seal will be mounted play a crucial role in its performance. A rough or worn shaft surface can damage the seal quickly, leading to leakage.

- Shaft Surface:

  Ensure the shaft surface is smooth and free of grooves, scratches, or other imperfections that could compromise the seal's effectiveness. A polished shaft is optimal for extending the life of the oil seal.

- Rotational Speed:

  Oil seals are designed to handle specific rotational speeds. High-speed shafts require seals that can withstand the friction generated by rapid rotations without overheating or experiencing premature wear.

8. Evaluate Dust and Contaminant Exposure

In applications exposed to harsh environments, dust, or debris, it’s essential to consider seals with additional protection. Double-lip or triple-lip skeleton oil seals provide extra defense against contaminants, preventing them from entering the system and compromising lubrication.

For heavy-duty applications, seals equipped with dust flingers or wipers can further protect against contaminants and ensure the system remains clean.

9. Look for Additional Features

Certain skeleton oil seals come with features designed to improve performance and durability, particularly in challenging conditions. Some examples include:

- Spring-Loaded Seals:

  These seals include a spring that helps maintain consistent pressure around the shaft, ensuring a tight seal and preventing leaks, even as the seal wears down over time.

- Labyrinth Seals:

  Labyrinth seals are uniquely designed to offer enhanced resistance to contaminants, making them ideal for applications exposed to high levels of dirt or dust.

10. Consider the Cost and Availability

Lastly, when selecting a skeleton oil seal, it’s important to balance cost with the specific needs of your application. While quality should not be compromised, consider your budget and ensure that replacement seals are easily accessible for future maintenance. This will help avoid downtime and ensure smooth operation.

Conclusion

Selecting the right skeleton oil seal requires a clear understanding of your application’s unique requirements, such as the operating environment, shaft speed, pressure, and the type of fluid being sealed. Carefully consider factors like the material, lip design, and seal dimensions to ensure compatibility with the operating conditions. A high-quality, well-chosen oil seal will optimize performance, extend the lifespan of your machinery, and minimize downtime caused by leaks or failures.

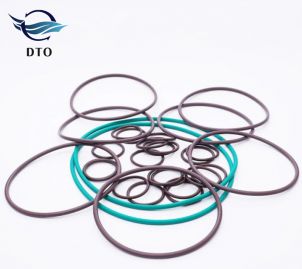

For premium O-rings in various sizes and materials, ideal for industrial sealing applications, explore our range of high-quality seals designed for a variety of industries.
