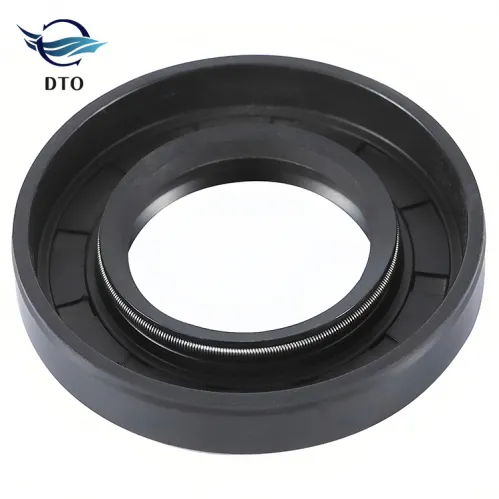

TC Oil Seal 50*80*10
Model: 50*80*10 (Contact us for more models)

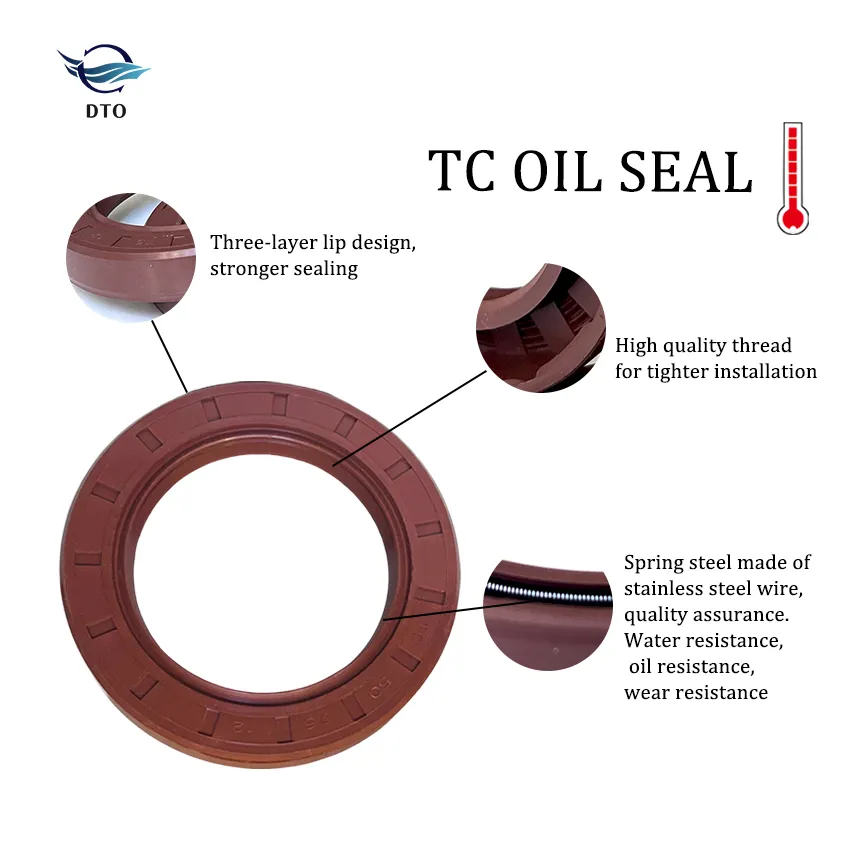

TC Oil Seal Appearance: The TC oil seal consists of a strong metal housing (commonly made of steel for increased rigidity) and a double-lip rubber seal.
Shaft Movement: rotate
Material Classification: NBR, ACM, VMQ, FKM
Sealing Medium: Lubricating oil
Main Application: Seal for oil and dust situations (maximum pressure 0.03MPa)
Description
Product Overview
The TC Oil Seal 50x80x10 from Dingtong is a high-performance double lip rotary shaft seal designed for reliable lubricating oil retention and dust exclusion in industrial rotating equipment. Featuring a reinforced steel case and precision-molded elastomer lips, this seal delivers stable sealing performance under continuous operation and low-pressure environments.
It is widely supplied to OEM manufacturers, distributors, and industrial maintenance companies for long-term, high-volume applications in motors, gearboxes, pumps, and transmission systems.
Key Specifications
| Parameter | Description |
|---|---|
| Product Type | TC Oil Seal |
| Size | 50 × 80 × 10 mm |
| Shaft Type | Rotating Shaft |
| Sealing Medium | Lubricating Oil |
| Max Pressure | ≤ 0.03 MPa |
| Housing Material | Carbon Steel / Stainless Steel (Optional) |
| Lip Structure | Primary Oil Lip + Secondary Dust Lip |
| Spring Type | High-Elastic Stainless Steel Spring |
| Operating Temperature | Depends on Material |
| Brand | Dingtong |
Available Materials
To meet different operating conditions and purchasing requirements, Dingtong supplies multiple material options:
| Material | Features | Typical Application |
|---|---|---|
| NBR | Oil-resistant, cost-effective | Standard industrial equipment |
| FKM (Viton) | High-temperature, chemical resistant | Automotive, heavy-duty systems |
| ACM | Heat and oil resistant | Transmission systems |
| VMQ (Silicone) | Low-temperature flexibility | Cold environments |
Bulk orders can be customized with mixed material configurations for multi-project procurement.
Structural Advantages

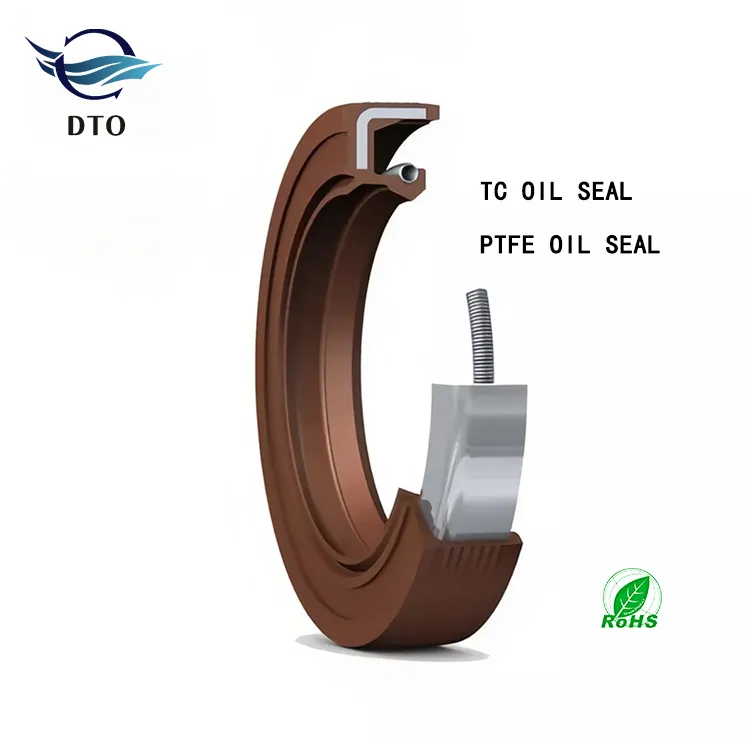

The TC Oil Seal 50x80x10 adopts a classic double-lip design optimized for long service life:
Reinforced steel outer case ensures stable fitting and dimensional accuracy
Precision-machined rubber lips maintain consistent contact pressure
Independent dust lip protects internal systems from contamination
Corrosion-resistant spring guarantees uniform radial force
Optimized lip geometry reduces friction and wear
This structure supports continuous operation in high-load industrial environments.
Performance Characteristics
Dingtong TC oil seals are manufactured under strict quality control systems to ensure stable batch consistency.
Reliable oil retention under long-term rotation
Low friction coefficient to minimize shaft wear
Stable sealing performance at variable speeds
Resistance to oil aging and material degradation
Excellent dimensional repeatability for automated assembly
Each production batch undergoes dimensional inspection and functional testing before shipment.
Typical Applications
The TC Oil Seal 50x80x10 is commonly used in:
Electric motors and drive systems
Industrial gearboxes and reducers
Hydraulic and lubrication pumps
Conveying equipment
Agricultural machinery
Construction machinery
Automotive transmission components
It is suitable for both original equipment manufacturing and large-scale replacement programs.
Manufacturing & Quality Assurance
As a professional oil seal manufacturer, Dingtong operates integrated production lines covering molding, metal processing, vulcanization, trimming, and final inspection.
Our quality management system includes:
Incoming raw material verification
Precision mold control
Automated dimensional measurement
Dynamic sealing performance testing
Batch traceability system
Long-term durability evaluation
Certifications and inspection reports can be provided for large-volume projects.
Customization & OEM Support
For customers with high-volume and long-term procurement plans, Dingtong provides comprehensive customization services:
Private labeling and packaging
Special material formulation
Non-standard size development
Performance enhancement design
Engineering drawing confirmation
Sample approval before mass production
Our technical team supports project-based development and long-term supply contracts.
Packaging & Logistics
To support international bulk shipments, Dingtong offers flexible packaging solutions:
Standard industrial cartons with inner protection
Palletized export packaging
Customer-branded packaging
Barcode and batch labeling
Container loading optimization
Stable inventory management ensures reliable delivery for scheduled procurement.
Why Choose Dingtong for Bulk Supply
Specialized in oil seal manufacturing
Stable large-scale production capacity
Competitive factory-direct pricing
Consistent batch quality
Engineering support for OEM clients
Long-term cooperation experience
Global export capability
We focus on building sustainable supply partnerships rather than short-term transactions.
Ordering Information
For bulk inquiries and project-based procurement, please provide:
Required quantity
Material specification
Application environment
Annual demand forecast
Target delivery schedule
Our sales and engineering team will prepare optimized quotations and supply solutions.
Frequently Asked Questions
Q1: Is this TC oil seal suitable for continuous operation?
Yes. The reinforced structure and optimized lip design support long-term rotating applications under standard pressure conditions.
Q2: Can you supply customized materials for special environments?
Yes. We offer tailored material formulations based on temperature, oil type, and chemical exposure.
Q3: Do you support long-term supply contracts?
Yes. Dingtong supports framework agreements and annual supply plans for major buyers.
Q4: What is the typical lead time for bulk orders?
Standard models usually require 15–25 days depending on quantity and customization level.
Q5: Can samples be provided before mass production?
Yes. Samples and pre-production approval are available for project orders.
Contact Dingtong for Bulk Procurement
Looking for a reliable supplier of TC Oil Seal 50x80x10 for large-scale manufacturing or distribution?
Dingtong provides stable quality, scalable capacity, and long-term technical support for professional buyers worldwide.
Contact us today to receive technical data, pricing, and customized supply solutions.
