Size: 35*41*5.5/9
OEM: AC8368E 90310-35001
Type: SCY
Application: TOYOTA
Place of Origin: Hebei,china
Advantages: Factory Direct, Factory Price, Standard High Quality Oil Seals
Description
| Item | Content |
| Car Brand | Toyota |
| OEM Number(s) | AC8368E 90310-35001 |

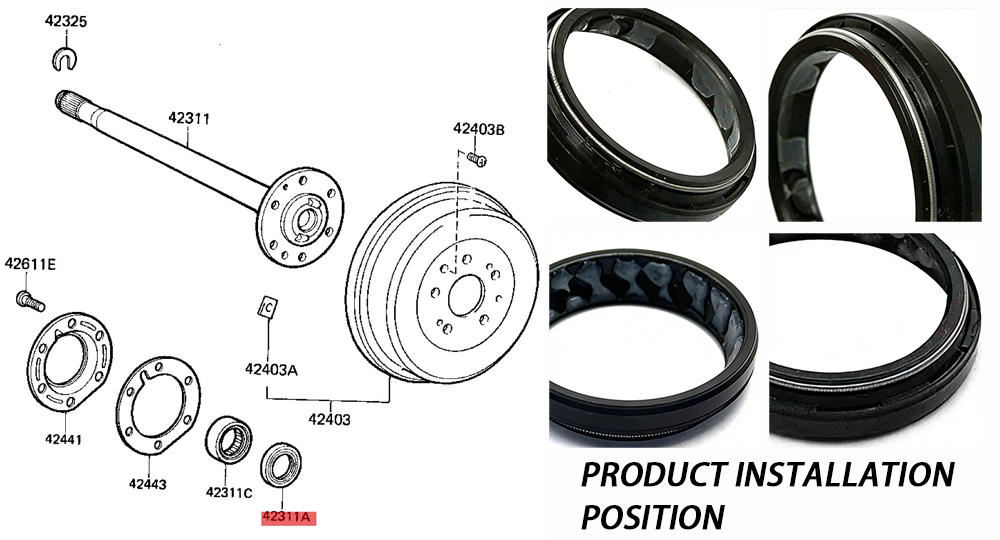

| Usage | For rear axle half shaft |
| Material | NBR/FKM |
| Size | 35*41*5.5/9 |
| Type | SCY |
| HS CODE | 8487900000 |
| Certificate | ISO9001, TS16949 |
| Standard | JIS B 2401, ISO 6194 |
| 90310-35001 AC8368E | Original English Name | Production Period | Region | ||
| 671440 | 4-RUNNER TRUCK | 1983.08-1989.03 | RN5#,6#,7#,VZN6#,LN5#,6# | Europe | |
| 671440 | 4-RUNNER TRUCK | 1983.08-1989.03 | RN5#,6#,7#,VZN6#,LN5#,6# | USA/Canada | |
| 672450 | 4-RUNNER TRUCK (J PP) | 1988.08-1995.11 | RN8#,90,12#,VZN85,9#,VZN120 | Europe | |
| 672450 | 4-RUNNER TRUCK (J PP) | 1988.08-1995.11 | RN8#,90,12#,VZN85,9#,VZN120 | USA/Canada | |
| 691130 | HIACE TRUCK | 1982.11-1985.07 | RH24,LH24 | Japan | |
| 691140 | HIACE TRUCK | 1985.08-1987.08 | LH80,YH80 | Japan | |
| 691150 | HIACE TRUCK | 1987.08-1995.05 | YH81,LH8#,LH9# | Japan | |
| 711120 | HIACE VAN,WAGON | 1982.12-1987.08 | YH5#,6#,71,LH5#,6#,7# | Japan | |
| 711130 | HIACE VAN,WAGON | 1987.08-1989.08 | YH5#,6#,71,LH5#,6#,7# | Japan | |
| 721110 | HIACE QUICK DELIVERY | 1982.05-1985.07 | LH24 | Japan | |
| 721120 | HIACE QUICK DELIVERY | 1985.08-1995.05 | LH8# | Japan | |
| 721130 | QUICK DELIVERY | 1995.05-2001.08 | BU68,LH81,82,LY151,152,RZU68 | Japan | |
| 731130 | TOYOACE | 1979.03-1985.07 | RY2#,3#,LY2#,3#,JY30,BY3# | Japan | |
| 731140 | TOYOACE/DYNA | 1985.08-1987.08 | YY5#,61,LY50,60 | Japan | |
| 731150 | TOYOACE/DYNA | 1987.08-1995.05 | LY5#,LV6#,YY5#,YY61 | Japan | |
| 731160 | DYNA 150/TOYOACE G15 | 1995.05-2001.07 | LY1##,2##,YY1##,2## | Japan | |
| 731230 | TOYOACE | 1979.03-1985.07 | RY20,3#,LY20,3#,JY30 | Europe | |
| 731230 | TOYOACE | 1979.03-1985.07 | RY20,3#,LY20,3#,JY30 | Other Countries | |
| 731240 | DYNA150 | 1985.08-1987.08 | YY5#,6#,LY60 | Europe | |
| 731240 | DYNA150 | 1985.08-1987.08 | YY5#,6#,LY60 | Other Countries | |
| 731260 | DYNA 150 | 1995.05-2001.10 | LY21#,YY211 | Europe | |
| 731260 | DYNA 150 | 1995.05-2001.10 | LY21#,YY211 | Other Countries | |
| 731350 | DYNA150 | 1987.08-1995.05 | YY5#,6#,LY6# | Other Countries | |
| 781110 | LAND CRUISER S/T,H/T | 1980.08-1984.10 | BJ4# | Japan | |
| 781120 | LAND CRUISER S/T,H/T | 1984.11-1990.01 | LJ71,BJ7# | Japan | |
| 781130 | LAND CRUISER S/T,H/T | 1990.01-2004.08 | FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# | Japan | |
| 781210 | LAND CRUISER | 1980.08-1986.04 | BJ4#,HJ47,FJ4# | Europe | |
| 781210 | LAND CRUISER | 1980.08-1986.04 | BJ4#,HJ47,FJ4# | Other Countries | |
| 781320 | LAND CRUISER | 1984.11-1990.01 | RJ70,LJ70,BJ7#,HJ75,FJ7# | Other Countries | |
| 781330 | LAND CRUISER | 1990.01-2008.08 | FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# | Other Countries | |
| 781330 | LAND CRUISER | 1990.01-2008.08 | FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# | USA/Canada | |
| 781410 | LAND CRUISER | 1980.08-1984.10 | BJ42,FJ40 | USA/Canada | |
| 781520 | LAND CRUISER | 1984.11-1990.01 | RJ7#,LJ7#,BJ7# | Europe | |
| 781530 | LAND CRUISER | 1990.01-2001.08 | BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7# | Europe | |
| 791110 | LAND CRUISER VAN | 1969.03-1980.07 | FJ4#,5#,BJ4# | Japan | |
| 791120 | LAND CRUISER VAN | 1980.08-1987.08 | BJ6#,FJ6#,HJ6# | Japan | |
| 791130 | LAND CRUISER VAN | 1987.08-1990.01 | FJ6#,HJ6# | Japan | |
| 791140 | LAND CRUISER VAN | 1990.01-1998.01 | FJ80,FZJ80,HDJ81,HZJ81 | Japan | |
| 791210 | LAND CRUISER | 1969.03-1980.07 | FJ4#,55,BJ4#,HJ45 | Europe | |
| 791210 | LAND CRUISER | 1969.03-1980.07 | FJ4#,55,BJ4#,HJ45 | Other Countries | |
| 791220 | LAND CRUISER | 1980.08-1987.08 | BJ60,HJ6#,FJ6# | Europe | |
| 791220 | LAND CRUISER | 1980.08-1987.08 | BJ60,HJ6#,FJ6# | Other Countries | |
| 791330 | LAND CRUISER | 1987.08-1992.03 | BJ60,HJ6#,FJ62 | Other Countries | |
| 791340 | LAND CRUISER | 1990.01-2006.12 | FJ80,HDJ80,HZJ80,FZJ80 | Other Countries | |
| 791410 | LAND CRUISER | 1969.03-1980.07 | BJ40,FJ4#,55 | USA/Canada | |
| 791420 | LAND CRUISER | 1980.08-1987.08 | BJ60,HJ60,FJ6# | USA/Canada | |
| 791430 | LAND CRUISER | 1987.08-1990.01 | FJ62 | USA/Canada | |
| 791440 | LAND CRUISER | 1990.01-1998.01 | FJ80,FZJ80 | Europe | |
| 791440 | LAND CRUISER | 1990.01-1998.01 | FJ80,FZJ80 | USA/Canada | |
| 791530 | LAND CRUISER | 1987.08-1990.01 | FJ62,HJ6# | Europe | |
| 791540 | LAND CRUISER | 1990.01-1998.01 | FJ80,FZJ80,HDJ80,HZJ80 | Europe |
| Material characteristics | |||
| Material Type | Core Advantages | Temperature Range | Key Applications |
| NBR (Nitrile Butadiene Rubber) | Excellent oil resistance (mineral/animal/vegetable oils), high tensile strength, good wear resistance and elasticity | -40℃~120℃ (short-term 150℃) | Automotive engine oil seals, gearbox oil seals, hydraulic system seals |
| ACM (Acrylic Ester Rubber) | Superior fuel resistance than NBR, good wear resistance and compression set resistance | -20℃~170℃ (short-term 200℃) | Automotive engine oil seals, fuel system seals, high-temperature condition seals |
| MVQ (Methyl Vinyl Silicone Rubber) | Outstanding low-temperature resistance, excellent elasticity and aging resistance | -60℃~200℃ (short-term 250℃) | Low-temperature condition seals, food & pharmaceutical equipment seals, insulating seals |
| FKM (Fluoroelastomer) | Excellent all-round performance, oil/chemical/weather resistance | -20℃~200℃ (250℃ for special grades) | High-temperature & high-pressure seals, chemical equipment seals, extreme automotive condition oil seals |
| brand | OEM | Location | type | size |
| TOYOTA | Toyota (Imported) 42423BZ010 Toyota (Imported) 9004A31018 Toyota (Imported) 9004A36012 Daihatsu (Imported) 4242387401 Daihatsu (Imported) 9004311291 Daihatsu (Imported) 9004363248 Daihatsu (Imported) 9004363248000 Daihatsu (Imported) 9004363263 | Oil seal (used for rear axle half shafts) | TC | 44*56*8 |
| TOYOTA | 90033-19006 | (Right front axle hub) | 101*114*9.5 | |
| TOYOTA | TOYOTA 90033-11032 | Wheel hub oil seal | SCY | 57*124*12.7/14 |
| TOYOTA | TOYOTA 90311-99011 CORTECO 19036834B MEC-DIESEL 520368 VICTOR REINZ 81-54109-00 BGA OS9145 GLASER P77761-01 ELRING 522.630 | Crankshaft oil seal | 138*152.6*10 | |
| TOYOTA | 90033-11039 | Gear oil seal | 65*105*9/25 | |
| TOYOTA | 9044A-31041/AE2556F | Rear wheel hub oil seal | HTC | 42*60*8 |
| TOYOTA | 44621-36070 | Engine oil seal | ||
| TOYOTA | 90310-40001/05103 | Oil seal type ADS-5S (1), with dust lip and with spring | SC5Y | 40*46*12.8/17.5 |
| TOYOTA | 90311-75009 | Engine rear oil seal | HTCL | 75*100*8.5 |
| TOYOTA | 90311-82001 | Rear axle right half shaft oil seal | 82*116*10/20 | |
| TOYOTA | Toyota (Imported) 9008031053 Toyota (Imported) 9031192001 Toyota (Imported) 9031192002 Toyota (Imported) 9031192003 Toyota (Imported) 9031192004 Toyota (Imported) 9031192006 Toyota (Imported) 9031192007 Toyota (Imported) 9031192008 Toyota (Imported) 9031192009 Toyota (Imported) 9031192010 Toyota (Imported) 90311A0027 Toyota (Imported) 4301180 Volvo (Imported) 430118 Volvo (Imported) 68420934 Volvo (Imported) 68421601 Lexus (Imported) 9008031053 Lexus (Imported) 9031192006 Lexus (Imported) 9031192008 Lexus (Imported) 9031192010 Lexus (Imported) 90311A0027 | Engine rear oil seal | HTC | 92*110*9.5 |
| TOYOTA | 90311-47003 BE3683E | Shaft oil seal | 47*84*11/17.5 | |
| TOYOTA | Toyota (Imported) 1121305010 Toyota (Imported) 1121354050 Wiesmann (Imported) 1121305010 Wiesmann (Imported) 1121354050 | Cylinder head gasket | ||
| TOYOTA | Toyota (Imported) 1121322010 Toyota (Imported) 1121324020 Daihatsu (Imported) 1121322010 Opel (Imported) 1121324020 Wiesmann (Imported) 1121322010 | Toyota 5K/7K car engine cylinder head cover gasket | ||
| TOYOTA | 11213-0Y030 11213-0Y020 11213-47020 11213-0L010 112130L010 | rocker arm cover gasket | ELRING 316.170 | |
| TOYOTA | 112130L010 1121330020 1121330021 1121330040 | Cylinder head gasket | ||
| TOYOTA | 11213-0E010 11213-11070 | Toyota Hilux engine cover gasket | ||
| TOYOTA | 11213-0C010 | Cylinder head gasket | ||
| TOYOTA | 90043-11053/AD3538F | wheel hub axle | TB2Y | 70*112*14/20 |
| TOYOTA | Toyota (Imported) 9008031050 Toyota (Imported) 9008031059 Toyota (Imported) 9031176001 Toyota (Imported) 9031176003 | Engine rear oil seal | TC | 76*94*8.5 |
| TOYOTA | 90310-54001 90313-T0001 | Rear wheel hub oil seal | KC3Y | 54*64*9/24 |
| TOYOTA | MTO34A2 90311-34021 | Right half shaft oil seal | HTC9R | 34*48*8/13 |
| TOYOTA | Toyota (Imported) 1351001M00 Toyota (Imported) 9004A31021 Toyota (Imported) 9008031066 Toyota (Imported) 9031132001 Toyota (Imported) 9031132018 Toyota (Imported) 9031135003 Toyota (Imported) 9031135008 Toyota (Imported) 9031135013 Toyota (Imported) 9031135017 Toyota (Imported) 9031135022 Toyota (Imported) 9031135031 Toyota (Imported) 9031135035 Toyota (Imported) 9031135040 Toyota (Imported) 9031135049 Daihatsu (Imported) 9031135040 Nissan (Imported) 1351001M00 | Crankshaft high temperature oil seal | HTCR | 35*49*6 |
| TOYOTA | Toyota (Imported) 9031148001 Toyota (Imported) 9036819037 Toyota (Imported) 9036831067 Nissan (Imported) 9031148001 | Oil seal (used for rear axle half shafts) | KC3Y | 48*62*9/24 |
| TOYOTA | 90311-19002/AP8096E | Power steering oil seal | 19*32*7/8 |
| Our core strengths |
| Globally Sourced Premium Raw Materials, Quality Guaranteed at the SourceWe partner with vetted high-quality raw material suppliers across China and overseas, sourcing premium inputs imported from the U.S., Germany and Southeast Asia. This ensures a solid quality foundation for every product from the very beginning. |
| Tailor-Made Customization, Precision Engineered for Your NeedsWe offer top-tier custom rubber product solutions, which are precisely engineered to meet the unique operational requirements of diverse scenarios and deliver fully optimized, application-specific products. |
| Efficient Production & On-Time DeliveryLeveraging our streamlined production system, we enable rapid manufacturing turnaround and strictly adhere to delivery timelines. We guarantee prompt product arrival with zero delays to your project schedules and operational plans. |
| One-Stop Solution, Driving Cost & Time EfficiencyWe integrate end-to-end services spanning customization, production and after-sales support, complemented by value-added solutions. This helps clients streamline procurement workflows and achieve significant time and cost savings. |
| Flexible OEM/ODM CapabilitiesWe specialize in R&D, design and manufacturing of a full range of non-standard rubber sealing components based on customer-provided drawings, fully accommodating diverse customization demands. |
| 100% Pre-Shipment Inspection, Uncompromising Quality AssuranceWe implement rigorous quality control standards. All finished rubber products undergo 100% comprehensive inspection prior to shipment, ensuring each unit delivered meets stringent quality benchmarks. |
| FAQ |
| Packaging, Delivery & Service Terms |
| 1.Packaging Options |
| Paper roll packaging: 10 pieces per roll, 200 rolls per carton |
| PP bag packaging: 50 or 100 pieces per bag, 15 or 30 bags per carton |
| Carton packaging: 1 piece per box |
| Custom packaging solutions are available upon customer request. |
| 2.Delivery Lead Time |
| For in-stock items: Shipment arranged within 1–2 working days |
| For out-of-stock items with existing molds: Production lead time 10–15 days |
| For out-of-stock items without existing molds: Production lead time 25–30 days (including mold development) |
| 3.Payment Terms |
| 30% deposit via Telegraphic Transfer (T/T) in advance |
| 70% balance payment to be settled before shipment |
| Sample-Based Production Capability |
| We have our own brand DTO, and also accept both ODM and OEM orders. Equipped with comprehensive capabilities covering product analysis, mold development and mass production, we can accurately manufacture products according to the samples provided by customers. |
