Home > Industry > Automobile oil seal > Japanese brands > Honda > TCY 91214-58H-A01 91206-PC8-00591206PG9711 91206PC8003 90208PG9211Honda40*58*9Shaft oil seal OIL SEAL

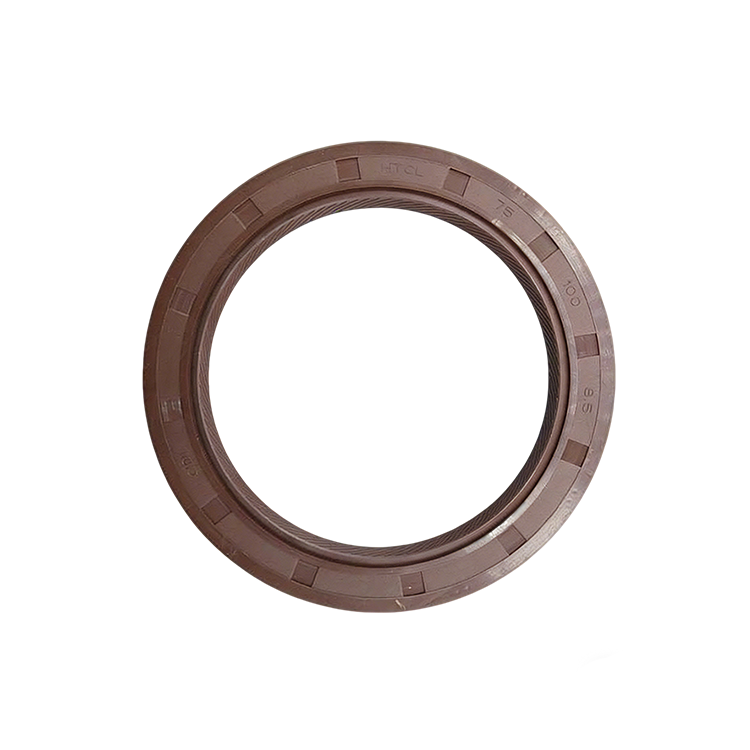

TCY 91214-58H-A01 91206-PC8-00591206PG9711 91206PC8003 90208PG9211Honda40589Shaft oil seal OIL SEAL

OEM:91214-58H-A01

Size:40*58*9

Place of Origin: Hebei,china

Advantages: Factory Direct, Factory Price, Standard High Quality Oil Seals

Whatsapp:+8618332558601

Mail:jasper@dtooilseal.com

Inquire Now Next Product

Description

Item	Details
OE Number	91214-58H-A01 (also written as 9121458HA01)
Product Name	Engine Oil Seal
Brand	Acura (Honda's premium brand) Original Equipment
Specification & Size	40×58×9 (Inner diameter: 40mm, Outer diameter: 58mm, Thickness: 9mm)
Applicable Models	2017-2020 Acura NSX 3.5L V6 Hybrid (2-door sports car)
Function & Purpose	Suitable for camshaft or balance shaft positions of the engine, prevents engine oil leakage, and adapts to the special working conditions of hybrid models
Material	Normally Fluororubber (FPM), equipped with dust lip and oil return design, resistant to high and low temperatures and aging
Project	Content

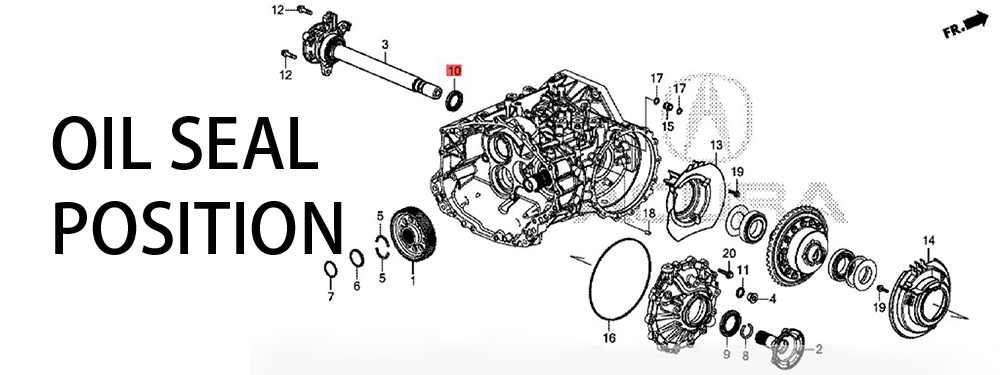

Structural position	42311A
HS CODE	8487900000
Certificate	ISO9001/TS16949
Standard	Standard

Applicable models

Name	Model	Year	Engine	Transmission	Region	Configuration	Grade	Model Code
Acura NSX	NC1	2018	JNC1	Dual Clutch	KH	LHD	FIF	T6NZ2HB6
Acura NSX	NC1	2017	JNC1	Dual Clutch	KH	LHD	BASE	T6NA2HA8
Acura NSX	NC1	2017	JNC1	Dual Clutch	KH	LHD	FIF	T6NA2HB6

Material characteristics

Material Type	Core Advantages	Temperature Range	Key Applications
NBR (Nitrile Butadiene Rubber)	Excellent oil resistance (mineral/animal/vegetable oils), high tensile strength, good wear resistance and elasticity	-40℃~120℃ (short-term 150℃)	Automotive engine oil seals, gearbox oil seals, hydraulic system seals
ACM (Acrylic Ester Rubber)	Superior fuel resistance than NBR, good wear resistance and compression set resistance	-20℃~170℃ (short-term 200℃)	Automotive engine oil seals, fuel system seals, high-temperature condition seals
MVQ (Methyl Vinyl Silicone Rubber)	Outstanding low-temperature resistance, excellent elasticity and aging resistance	-60℃~200℃ (short-term 250℃)	Low-temperature condition seals, food & pharmaceutical equipment seals, insulating seals
FKM (Fluoroelastomer)	Excellent all-round performance, oil/chemical/weather resistance	-20℃~200℃ (250℃ for special grades)	High-temperature & high-pressure seals, chemical equipment seals, extreme automotive condition oil seals

Xingtai Dingtong Rubber is a professional products co., Ltd. production and sales of seals enterprises.Founded in 1996, it covers an area of 23,300 square meters, 26 machines, and 3200 kinds of molds. Our products are often exported to North America, Asia,Europe, Northern Europe, Southeast Asia, South Asia, Asia, South America, Africa.

Our core strengths

Globally Sourced Premium Raw Materials, Quality Guaranteed at the SourceWe partner with vetted high-quality raw material suppliers across China and overseas, sourcing premium inputs imported from the U.S., Germany and Southeast Asia. This ensures a solid quality foundation for every product from the very beginning.

Tailor-Made Customization, Precision Engineered for Your NeedsWe offer top-tier custom rubber product solutions, which are precisely engineered to meet the unique operational requirements of diverse scenarios and deliver fully optimized, application-specific products.

Efficient Production & On-Time DeliveryLeveraging our streamlined production system, we enable rapid manufacturing turnaround and strictly adhere to delivery timelines. We guarantee prompt product arrival with zero delays to your project schedules and operational plans.

One-Stop Solution, Driving Cost & Time EfficiencyWe integrate end-to-end services spanning customization, production and after-sales support, complemented by value-added solutions. This helps clients streamline procurement workflows and achieve significant time and cost savings.

Flexible OEM/ODM CapabilitiesWe specialize in R&D, design and manufacturing of a full range of non-standard rubber sealing components based on customer-provided drawings, fully accommodating diverse customization demands.

100% Pre-Shipment Inspection, Uncompromising Quality AssuranceWe implement rigorous quality control standards. All finished rubber products undergo 100% comprehensive inspection prior to shipment, ensuring each unit delivered meets stringent quality benchmarks.

Other OEM

Part OE Number	brand	Applicable Chassis Codes
91213-PR3-013	Honda	CC2, UA2
91213-PL2-003	Honda	CE6
91206-PC8-003	Honda	EH9, RD1, RD2, RD3
91214-58H-A01	Honda	NC1
91214-PWJ-Z01	Honda	GM2
91212-PT0-003	Honda	BA8, BB1, BB2, BB6, CB3, CB7, CC2, RA1, UA2
91216-PL3-003	Honda	EG1, EG7, EG8, EH6, EH9
91201-PWT-003	Honda	RD5, RD7, RE2, RE4, RM2, RM4, YH2
91201-PC1-003	Honda	DB1
91207-RE5-003	Honda	GE6
91208-68900-5	Honda	NA1, NA2
91208-PG1-003	Honda	DB1
91206-PG2-005	Honda	BA8, BB2, CB3, CB7, CD4, CD5, CE6
91207-PG4-005	Honda	CE6
91202-P6R-003	Honda	RD1, RD3
91214-PH3-751	Honda	BA8, BB1, BB2, CB3, CC2, CD5, DB1, EG1, EG2, EG8, EH6, EH9...
91233-PT0-003	Honda	BA8, BB1, BB2, BB6, CB3, CB7, CD4, CD5, CF8, CF9, CG5, CG6...
91208-PB6-005	Honda	GA3
91205-57A-003	Honda	FC1, FC7, FE3, FK7, FL1, FL6, FS1, FS4, RU1, RW1, RY1
91214-PL2-004	Honda	CE6, KA7, KA9, NA1, NA2, UA3
91206-PY4-004	Honda	KA7, KA9, UA3
91214-PT0-004	Honda	CB3, CB7, CD4, CD5, EG7, EG8, EH9, RA1
91215-PL3-005	Honda	EG1, EG7, EG8, EH4, EH5, EH6, EH9, EJ6, EJ8, EJ9, EK1, EK3...
91213-PE1-721	Honda	EG1, EG7, EG8, EH4, EH5, EH6, EH9
91206-PX5-000	Honda	CB3, CB7
91212-PS1-003	Honda	DB1
91212-PLC-003	Honda	EJ9, EK1, EK3, ES1, ES5, ES6, ES7, ES8, GA3
91212-PX5-008	Honda	CB3, CB7
91215-PG2-005	Honda	CC2, KA7
91212-5MR-A01	Honda	TB5, TB6
91202-SD4-951	Honda	DB1
91213-PR3-004	Honda	BB1, BB6, CC2, EG2, EK4, UA2
91209-PY4-003	Honda	KA7, KA9, UA3
91212-P20-008	Honda	EG1, EG7, EG8, EH4, EH5, EH6, EH9, EJ6, EJ8, EJ9, EK1, EK3...
91212-P7A-004	Honda	EJ9, EK1, EK3, GA3
91205-5MX-A01	Honda	TC1
91215-58G-A01	Honda	NC1
91207-6GA-003	Honda	CR6, CU9, CV3, CV6, CY3, FE4, FE5, FL4, FL7, FS2, FS5, RC4...
91212-P5G-004	Honda	KA7, KA9, UA3
91207-P4V-004	Honda	GA3
91201-PC1-004	Honda	DB1
91203-PW5-025	Honda	CC2, UA2
91215-PR8-005	Honda	NA1, NA2
91213-PY3-003	Honda	KA7, KA9, UA3
91213-PY3-004	Honda	KA7, KA9, UA3
91206-PL6-003	Honda	ZE1
91214-PMV-T01	Honda	ES5, ES6, ES7, ES8
91213-PE1-722	Honda	EG1, EG7, EG8, EH4, EH5, EH6, EH9, EJ6, EJ8, EJ9, EK1, EK3...
91206-PL3-A02	Honda	EG1, EG7, EG8, EH4, EH5, EH6, EH9, EJ6, EJ8, EJ9, EK1, EK3...
91206-PW5-015	Honda	CC2, UA2
91205-PX5-003	Honda	BA8, BB1, BB2, CB3, CB7
91212-P01-003	Honda	EG7, EG8, EH4, EH5, EH9, EJ9, EK1, EK3
91202-58H-A01	Honda	NC1
91214-PAA-A02	Honda	RA3

FAQ

Packaging, Delivery & Service Terms

1.Packaging Options

Paper roll packaging: 10 pieces per roll, 200 rolls per carton

PP bag packaging: 50 or 100 pieces per bag, 15 or 30 bags per carton

Carton packaging: 1 piece per box

Custom packaging solutions are available upon customer request.

2.Delivery Lead Time

For in-stock items: Shipment arranged within 1–2 working days

For out-of-stock items with existing molds: Production lead time 10–15 days

For out-of-stock items without existing molds: Production lead time 25–30 days (including mold development)

3.Payment Terms

30% deposit via Telegraphic Transfer (T/T) in advance

70% balance payment to be settled before shipment

Sample-Based Production Capability

We have our own brand DTO, and also accept both ODM and OEM orders. Equipped with comprehensive capabilities covering product analysis, mold development and mass production, we can accurately manufacture products according to the samples provided by customers.
