91214P8AA01 91214PH7003 91214PH70030 Rear Main Oil Seal 91214PH7004 91214PH7013 91214PL2003 91214PNA014809810 Shaft oil seal OIL SEAL

OEM:91214P8AA01 91214PH7003

Size:80*98*10

Advantages: Factory Direct, Factory Price, Standard High Quality Oil Seals

Whatsapp:+8618332558601

Mail:jasper@dtooilseal.com

Inquire Now Next Product

Description

Item	Details
OE Number	91214P8AA01 (91214-P8A-A01)

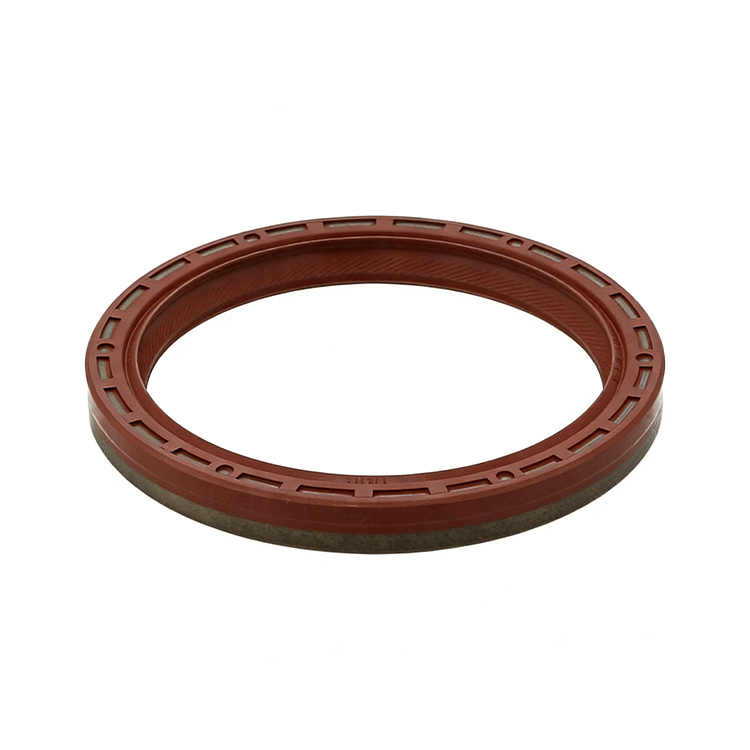

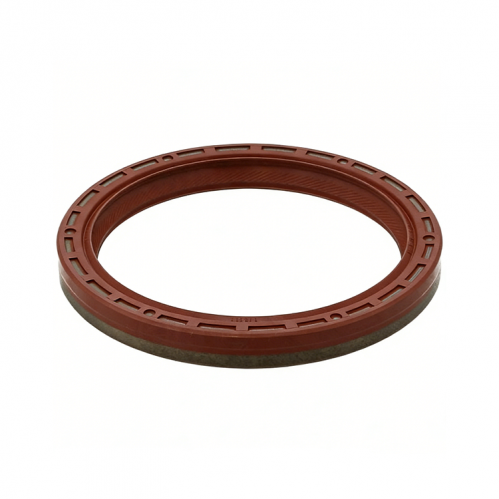

Product Name	Rear Main Oil Seal
Brand	Honda
Specification & Size	80×98×10 (Inner diameter: 80mm, Outer diameter: 98mm, Thickness: 10mm)

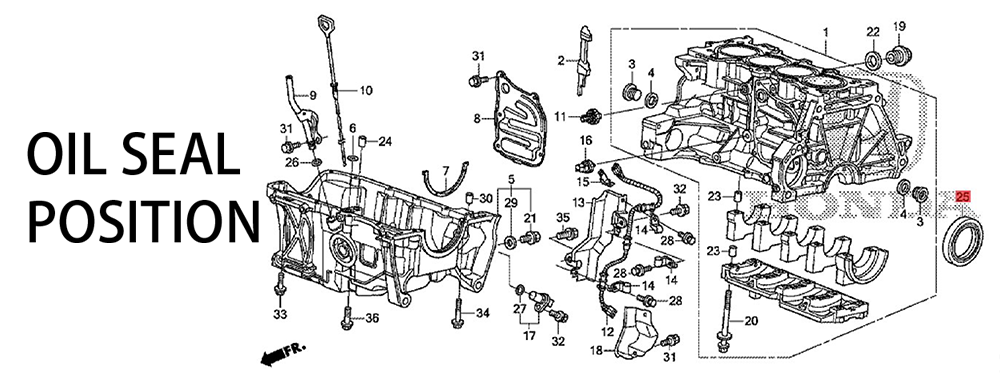

Function & Purpose	Installed at the rear end of the engine crankshaft (transmission side), prevents engine oil leakage from the joint between the crankshaft and cylinder block/oil pan, and ensures the sealing performance of the lubrication system
Material	Normally Nitrile Butadiene Rubber (NBR) or Fluororubber (FPM), equipped with dust lip and oil return design, adapted to high-temperature and high-pressure working conditions of the engine, resistant to engine oil and aging
Interchangeable Parts	Interchangeable with 91214-PWJ-Z01, 91214-PWA-003, 91214-PNA-014, etc.
Project	Content
Structural position	42311A
HS CODE	8487900000
Certificate	ISO9001/TS16949
Standard	Standard

Brand	Universal OE Number
Honda	91214P8AA01
Honda	91214PH7003
Honda	91214PH70030
Honda	91214PH7004
Honda	91214PH7013
Honda	91214PL2003
Honda	91214PNA014
Honda	91214PWA003
Honda	91214PWAY01
Honda	91214PWJZ01
Honda	91214PY3003
Honda	91214RNBA01
Honda	91214RTA004
Honda	91214RZA004
Honda	91214RZYA01
Alfa Romeo	55355235
Fiat	55355235
Lancia	55355235
Saab	55355235
Opel	614203
Opel	614821
Opel	614830
Opel	90180515
Opel	90233236
Opel	90233241
Opel	90325571
Opel	90352112
Vauxhall	614830
Vauxhall	90233236
Vauxhall	90352112
Chevrolet	90325571
Chevrolet	96376569
Daewoo	96101489
Daewoo	96376569
General Motors	90233236
General Motors	90325571
General Motors	90352112
Suzuki	1134084E00

Applicable models

Item	Details
OE Number	91214P8AA01 (91214-P8A-A01)
Product Name	Rear Main Oil Seal
Brand	Honda
Specification & Size	80×98×10 (Inner diameter: 80mm, Outer diameter: 98mm, Thickness: 10mm)
Function & Purpose	Installed at the rear end of the engine crankshaft (transmission side), prevents engine oil leakage from the joint between the crankshaft and cylinder block/oil pan, and ensures the sealing performance of the lubrication system
Material	Normally Nitrile Butadiene Rubber (NBR) or Fluororubber (FPM), equipped with dust lip and oil return design, adapted to high-temperature and high-pressure working conditions of the engine, resistant to engine oil and aging
Interchangeable Parts	Interchangeable with 91214-PWJ-Z01, 91214-PWA-003, 91214-PNA-014, etc.
Project	Content
Structural position	42311A
HS CODE	8487900000
Certificate	ISO9001/TS16949
Standard	Standard

Brand	Universal OE Number
Honda	91214P8AA01
Honda	91214PH7003
Honda	91214PH70030
Honda	91214PH7004
Honda	91214PH7013
Honda	91214PL2003
Honda	91214PNA014
Honda	91214PWA003
Honda	91214PWAY01
Honda	91214PWJZ01
Honda	91214PY3003
Honda	91214RNBA01
Honda	91214RTA004
Honda	91214RZA004
Honda	91214RZYA01
Alfa Romeo	55355235
Fiat	55355235
Lancia	55355235
Saab	55355235
Opel	614203
Opel	614821
Opel	614830
Opel	90180515
Opel	90233236
Opel	90233241
Opel	90325571
Opel	90352112
Vauxhall	614830
Vauxhall	90233236
Vauxhall	90352112
Chevrolet	90325571
Chevrolet	96376569
Daewoo	96101489
Daewoo	96376569
General Motors	90233236
General Motors	90325571
General Motors	90352112
Suzuki	1134084E00

Applicable models

Name	Model	Year	Engine	Transmission	Region	Configuration	Grade	Model Code
Honda City	GM2	2013	L15A7	5-speed Automatic	KU	ABS	V	TM0W2UA5
Honda City	GM2	2013	L15A7	5-speed Manual	KU	ABS	V	TM0W2UA0
Honda City	GM2	2012	L15A7	5-speed Automatic	KU	ABS	V	TM0X2UA5
Honda City	GM2	2012	L15A7	5-speed Manual	KU	ABS	V	TM0X2UA0
Honda City	GM2	2011	L15A7	5-speed Automatic	KU	ABS	V	TM0Y2UA5
Honda City	GM2	2011	L15A7	5-speed Manual	KU	ABS	V	TM0Y2UA0
Honda City	GM2	2010	L15A7	5-speed Automatic	KU	ABS	V	TM0Z2UA5
Honda City	GM2	2010	L15A7	5-speed Manual	KU	ABS	V	TM0Z2UA0
Honda City	GM2	2009	L15A7	5-speed Automatic	KU	ABS	V	TM0A2UA5
Honda City	GM2	2009	L15A7	5-speed Manual	KU	ABS	V	TM0A2UA0

Material characteristics

Material Type	Core Advantages	Temperature Range	Key Applications
NBR (Nitrile Butadiene Rubber)	Excellent oil resistance (mineral/animal/vegetable oils), high tensile strength, good wear resistance and elasticity	-40℃~120℃ (short-term 150℃)	Automotive engine oil seals, gearbox oil seals, hydraulic system seals
ACM (Acrylic Ester Rubber)	Superior fuel resistance than NBR, good wear resistance and compression set resistance	-20℃~170℃ (short-term 200℃)	Automotive engine oil seals, fuel system seals, high-temperature condition seals
MVQ (Methyl Vinyl Silicone Rubber)	Outstanding low-temperature resistance, excellent elasticity and aging resistance	-60℃~200℃ (short-term 250℃)	Low-temperature condition seals, food & pharmaceutical equipment seals, insulating seals
FKM (Fluoroelastomer)	Excellent all-round performance, oil/chemical/weather resistance	-20℃~200℃ (250℃ for special grades)	High-temperature & high-pressure seals, chemical equipment seals, extreme automotive condition oil seals

Xingtai Dingtong Rubber is a professional products co., Ltd. production and sales of seals enterprises.Founded in 1996, it covers an area of 23,300 square meters, 26 machines, and 3200 kinds of molds. Our products are often exported to North America, Asia,Europe, Northern Europe, Southeast Asia, South Asia, Asia, South America, Africa.

Our core strengths

Globally Sourced Premium Raw Materials, Quality Guaranteed at the SourceWe partner with vetted high-quality raw material suppliers across China and overseas, sourcing premium inputs imported from the U.S., Germany and Southeast Asia. This ensures a solid quality foundation for every product from the very beginning.

Tailor-Made Customization, Precision Engineered for Your NeedsWe offer top-tier custom rubber product solutions, which are precisely engineered to meet the unique operational requirements of diverse scenarios and deliver fully optimized, application-specific products.

Efficient Production & On-Time DeliveryLeveraging our streamlined production system, we enable rapid manufacturing turnaround and strictly adhere to delivery timelines. We guarantee prompt product arrival with zero delays to your project schedules and operational plans.

One-Stop Solution, Driving Cost & Time EfficiencyWe integrate end-to-end services spanning customization, production and after-sales support, complemented by value-added solutions. This helps clients streamline procurement workflows and achieve significant time and cost savings.

Flexible OEM/ODM CapabilitiesWe specialize in R&D, design and manufacturing of a full range of non-standard rubber sealing components based on customer-provided drawings, fully accommodating diverse customization demands.

100% Pre-Shipment Inspection, Uncompromising Quality AssuranceWe implement rigorous quality control standards. All finished rubber products undergo 100% comprehensive inspection prior to shipment, ensuring each unit delivered meets stringent quality benchmarks.

Other OEM

Part OE Number	brand	Applicable Chassis Codes
91213-PR3-013	Honda	CC2, UA2
91213-PL2-003	Honda	CE6
91206-PC8-003	Honda	EH9, RD1, RD2, RD3
91214-58H-A01	Honda	NC1
91214-PWJ-Z01	Honda	GM2
91212-PT0-003	Honda	BA8, BB1, BB2, BB6, CB3, CB7, CC2, RA1, UA2
91216-PL3-003	Honda	EG1, EG7, EG8, EH6, EH9
91201-PWT-003	Honda	RD5, RD7, RE2, RE4, RM2, RM4, YH2
91201-PC1-003	Honda	DB1
91207-RE5-003	Honda	GE6
91208-68900-5	Honda	NA1, NA2
91208-PG1-003	Honda	DB1
91206-PG2-005	Honda	BA8, BB2, CB3, CB7, CD4, CD5, CE6
91207-PG4-005	Honda	CE6
91202-P6R-003	Honda	RD1, RD3
91214-PH3-751	Honda	BA8, BB1, BB2, CB3, CC2, CD5, DB1, EG1, EG2, EG8, EH6, EH9...
91233-PT0-003	Honda	BA8, BB1, BB2, BB6, CB3, CB7, CD4, CD5, CF8, CF9, CG5, CG6...
91208-PB6-005	Honda	GA3
91205-57A-003	Honda	FC1, FC7, FE3, FK7, FL1, FL6, FS1, FS4, RU1, RW1, RY1
91214-PL2-004	Honda	CE6, KA7, KA9, NA1, NA2, UA3
91206-PY4-004	Honda	KA7, KA9, UA3
91214-PT0-004	Honda	CB3, CB7, CD4, CD5, EG7, EG8, EH9, RA1
91215-PL3-005	Honda	EG1, EG7, EG8, EH4, EH5, EH6, EH9, EJ6, EJ8, EJ9, EK1, EK3...
91213-PE1-721	Honda	EG1, EG7, EG8, EH4, EH5, EH6, EH9
91206-PX5-000	Honda	CB3, CB7
91212-PS1-003	Honda	DB1
91212-PLC-003	Honda	EJ9, EK1, EK3, ES1, ES5, ES6, ES7, ES8, GA3
91212-PX5-008	Honda	CB3, CB7
91215-PG2-005	Honda	CC2, KA7
91212-5MR-A01	Honda	TB5, TB6
91202-SD4-951	Honda	DB1
91213-PR3-004	Honda	BB1, BB6, CC2, EG2, EK4, UA2
91209-PY4-003	Honda	KA7, KA9, UA3
91212-P20-008	Honda	EG1, EG7, EG8, EH4, EH5, EH6, EH9, EJ6, EJ8, EJ9, EK1, EK3...
91212-P7A-004	Honda	EJ9, EK1, EK3, GA3
91205-5MX-A01	Honda	TC1
91215-58G-A01	Honda	NC1
91207-6GA-003	Honda	CR6, CU9, CV3, CV6, CY3, FE4, FE5, FL4, FL7, FS2, FS5, RC4...
91212-P5G-004	Honda	KA7, KA9, UA3
91207-P4V-004	Honda	GA3
91201-PC1-004	Honda	DB1
91203-PW5-025	Honda	CC2, UA2
91215-PR8-005	Honda	NA1, NA2
91213-PY3-003	Honda	KA7, KA9, UA3
91213-PY3-004	Honda	KA7, KA9, UA3
91206-PL6-003	Honda	ZE1
91214-PMV-T01	Honda	ES5, ES6, ES7, ES8
91213-PE1-722	Honda	EG1, EG7, EG8, EH4, EH5, EH6, EH9, EJ6, EJ8, EJ9, EK1, EK3...
91206-PL3-A02	Honda	EG1, EG7, EG8, EH4, EH5, EH6, EH9, EJ6, EJ8, EJ9, EK1, EK3...
91206-PW5-015	Honda	CC2, UA2
91205-PX5-003	Honda	BA8, BB1, BB2, CB3, CB7
91212-P01-003	Honda	EG7, EG8, EH4, EH5, EH9, EJ9, EK1, EK3
91202-58H-A01	Honda	NC1
91214-PAA-A02	Honda	RA3

FAQ

Packaging, Delivery & Service Terms

1.Packaging Options

Paper roll packaging: 10 pieces per roll, 200 rolls per carton

PP bag packaging: 50 or 100 pieces per bag, 15 or 30 bags per carton

Carton packaging: 1 piece per box

Custom packaging solutions are available upon customer request.

2.Delivery Lead Time

For in-stock items: Shipment arranged within 1–2 working days

For out-of-stock items with existing molds: Production lead time 10–15 days

For out-of-stock items without existing molds: Production lead time 25–30 days (including mold development)

3.Payment Terms

30% deposit via Telegraphic Transfer (T/T) in advance

70% balance payment to be settled before shipment

Sample-Based Production Capability

We have our own brand DTO, and also accept both ODM and OEM orders. Equipped with comprehensive capabilities covering product analysis, mold development and mass production, we can accurately manufacture products according to the samples provided by customers.
